Catalogue - special single row ball bearings

All dimensions are given in millimetres (mm), if not stated otherwise.
The values Cr, Cor or Ca, Coa are given in kilonewtons (kN).
Limiting speed frequency is understood in min-1.

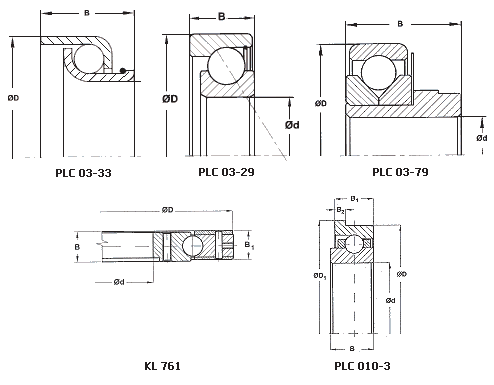

Dimension Plan

Dimensions Basic Load Rating Limiting Speed
for Lubrication with		 Designation Weight
d D B dynamic
Cr		 static
Cor		 grease oil   [kg]
 10.4  35  10  4.82  1.36  12600  17000  PLC 03-79  0.069
 17  35  9  8.2  5.3  18000  21000  PLC 03-29  0.033
 22.2  36.9  16.5  5.11  6.31      PLC 03-33  0.034
 140  215  42.86  116  139      PLC 010-3  5.3
 559  761  38.2  232  425      KL 761  51.3

Description - Use:

KL 761 Special ball bearing for debarking machines in wood-working industry.

Dimension Plan
