Catalogue - special double row ball bearings

All dimensions are given in millimetres (mm), if not stated otherwise.
The values C_r, C_or or C_a, C_oa are given in kilonewtons (kN).
Limiting speed frequency is understood in min^-1.

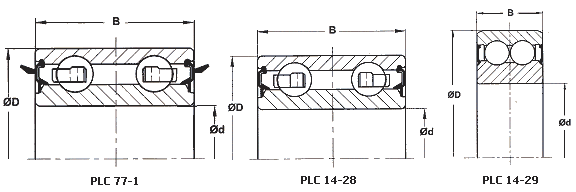

Dimension Plan

Dimensions			Basic Load Rating		Limiting Speed for Lubrication with	Designation	Weight
d	D	B	dynamic C_r	static C_or	grease		[kg]
25	52	43.8	24.3	17.7	5250	PLC 77-1	0.301
25	52	37	24.3	17.7	5250	PLC 14-28	0.301
36	62	16	24.1	27.1	4410	PLC 14-29	0.192

Dimension Plan
