Catalogue - special double row spherical roller bearings

All dimensions are given in millimetres (mm), if not stated otherwise.
The values Cr, Cor or Ca, Coa are given in kilonewtons (kN).
Limiting speed frequency is understood in min-1.

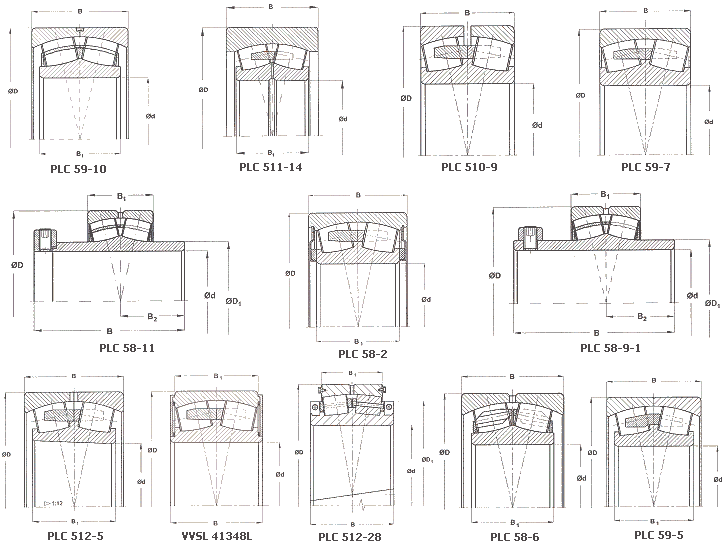

Dimension Plan

Dimensions Basic Load Rating Designation Weight
d D D1 B B1 B2 dynamic
Cr		 static
Cor		   [kg]
 65  158.8    70  48    212  250  PLC 58-2  7.36
 74.6  120  88.34  92  31  31.8  196  255  PLC 58-11  3
 76.2  130  88.71  92.2  31  31.75  196  255  PLC 58-9-1  3.1
 90  220    118  93    785  950  VVSL41348L  23
 100  150    62  50    310  550  PLC 58-6  3.7
 100  180    82  69    480  710  PLC59-5  10.3
 110  180    82  69    501  849  PLC 59-10  7.7
 110  288.92    115.9  80    786  978  PLC 511-14  40
 130  220    73      570  1080  PLC 59-7  12.2
 130  225    80      570  1080  PLC 510-9  12.2
 440  720    270  226    4300  9000  PLC 512-5  389
 750  1000    360      6380  17230  PLC 512-37  1220
 950  1250  1125  300  220    6400  20000  PLC 512-28  987

Description - Use:

PLC 59-10
 Bearing with extended outer ring for tilting angles up to 6°.
PLC 58-11 Clamping spherical roller bearing designed for agricultural machinery and conveyors.
PLC 58-2 Bearing with sheet metal shields and seals.
PLC 58-6 Double row spherical roller bearing of greater tilting angle, for mounting of transmission box of mobile concrete mixers. Polyamide cage.
PLC 59-5 Double row spherical roller bearing of greater tilting angle, for mounting of transmission box of mobile concrete mixers.
PLC 58-9-1 Clamping spherical roller bearing designed for agricultural machinery and conveyors.
PLC 511-14 Abutment roller with spherical roller bearing.
PLC 59-7 Double row spherical roller bearing made to UIC dimensional plan, for mounting of Railway vehicle axeswith journal diameter of 130 mm.
PLC 510-9 Double row spherical roller bearing with split outer ring.
PLC 512-5 Double row spherical roller bearing with split and extended outer ring for greater tilting angles.
PLC 512-28 Diagonally split double row spherical roller bearing, for mounting of converter.
VVSL 41348L Double row spherical roller bearing with shields and seals.

Dimension Plan
