Catalogue - special double row angular contact ball bearings

All dimensions are given in millimetres (mm), if not stated otherwise.
The values Cr, Cor or Ca, Coa are given in kilonewtons (kN).
Limiting speed frequency is understood in min-1.

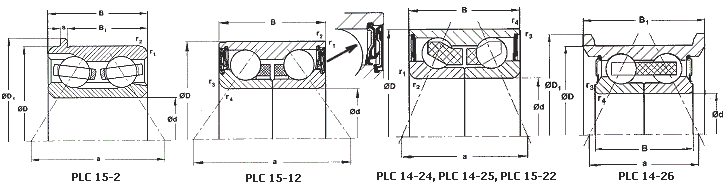

Dimension Plan

Dimensions Basic Load Rating Designation Weight
d D B B1 D1 s r1,2
min		 r3,4
min		 a dynamic
Cr		 static
Cor		   [kg]
 25  55  20  28  62      1  26.8  19.2  15.5  PLC 14-26  0.28
 25  65.5  25.4  16.5  74  4.4  1.1    40  30.4  26.6  PLC 15-2  0.466
 30  60  37        2.5  0.5  50.5  36.9  30.4  PLC 14-25  0.45
 34  64  37        2.8  0.3  53.5  36.9  31  PLC 14-24  0.32
 35  68  37        2.5  0.3  50.5  39.8  38.3  PLC 15-12  0.534
 37  72  37        2.8  0.3  57  43.8  39.8  PLC 15-22  0.55

Description - Use:

PLC 15-2 Bearings with steel sheet cage centered by balls. Originally these bearings are destined for mounting of shafts in motor vehicles transmissions housings.
PLC 15-12 Bearings with solid machined polyamide cage with filler, centered by balls, special sealing rings on both sides. Bearings filled by grease. Originally these bearings are destined for mounting of motor vehicles wheels.

Dimension Plan
